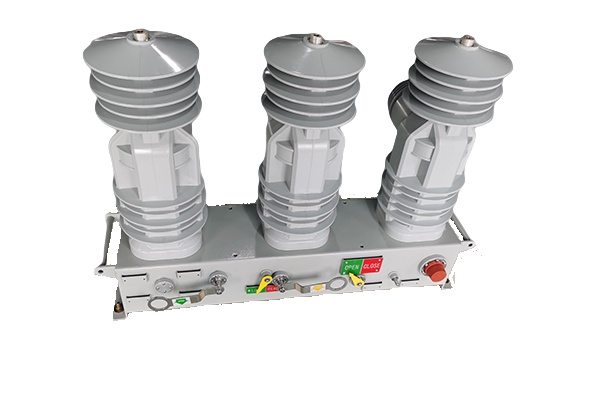

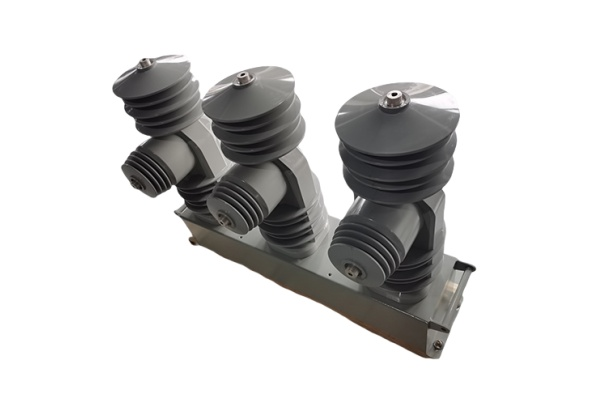

The 24KV breaker switch unit is comprised of three poles, the operating mechanism, and the operating mechanism housing. The sequence of the poles is A -B – C or 1 – 2 - 3 (sequence left to right when viewed from the lower terminal side of the recloser switch unit.
Each 24kv vacuum circuit breaker by GOPOWER is embedded in a solid-insulated pole made of weather-proof cyclo aliphatic epoxy resin. This enables a small design as well as resistance against environmental effects.
Contact UsZW32 series 24KV circuit recloser are used in distribution systems. 24kv vacuum circuit breakes are used to make and break normal and fault currents. Breakers are fully equipped with sensors and a controller to provide a means of protection and control. For more pole top switches at bulk price.
In case of a line fault, breakers can break and make currents several times, thus avoiding longer network interruptions due to temporary faults. The manufacture, design, and testing of the vacuum recloser is based on current standards IEC 62271-111：2019
Products Type | ZW32-24 |
Maximum System Voltage | 24kV |
Rated Continuous Current | 630A |
Rated Frequency | 50/60Hz |
Short Time Withstand Current | 20kA/1sec |
Mainly Active Load Current | 630A |
Number of Load-break Operations | 30 |
Short-circuit Making Current (peak) | 50kA |
Number of Making Operations | 5 times |
Cable Charging Current | 25A |
Line Charging Current | 1.5A |
Closed Loop Circuit Current | 630A |
Transformer Magnetizing Current | 22A |
Wet Condition-10sec Ph- Ph-Eth, Across Interrupters | 50kV |
DryCondition-1min，Ph- Ph, Phase to Earth | 65kV |
Dry Condition - 1 min AcrossInterrupter | 79kV |
Phase to Phase, Phase to Earth | 125kV |
Across Interrupter | 145kV |
Internal Arc Test | 20kA /0.1 sec |
Arc Extinction Medium | vacuum |
Insulation Medium | vacuum |
Creepage Distance (Silicon) | 960mm |
Dry arcing distance | 200mm≥ |
IP Level | 67 |
Closing/Opening Time | ＜1sec |
Mechanical Operations (Guaranteed) | 10000times |
Operating Temperature (*Manual Type) | -25～+70℃ |
